BYT-8

From TheRetroWagon
Jump to: navigation, search

BYT-8 Missing card edges got any? Power supply appears to work

Wanted to buy! An original front panel system, or at least the cabinet. I got one! :-) In the spring of 2018

Images

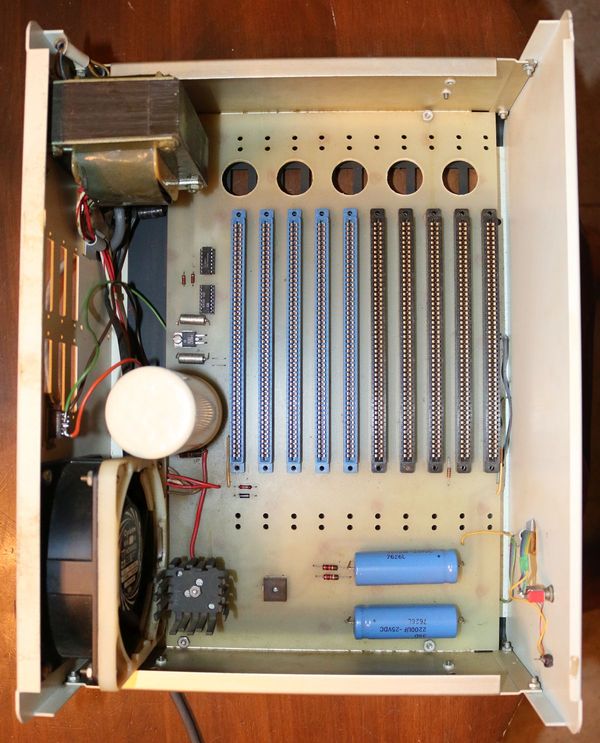

Cabinet

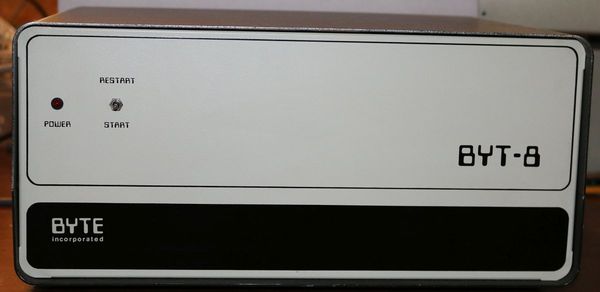

Turnkey



Front Panel

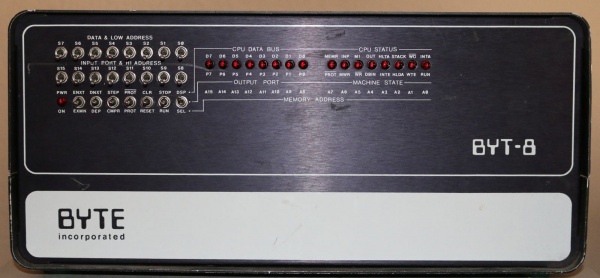

BYT-8 System with Front Panel.jpg

Boards

I obtained these boards in July 2017. They work. Note that the cabinet I had wasn't sold with the front panel. I might make a clear front panel with Plexiglas and mount the front panel.

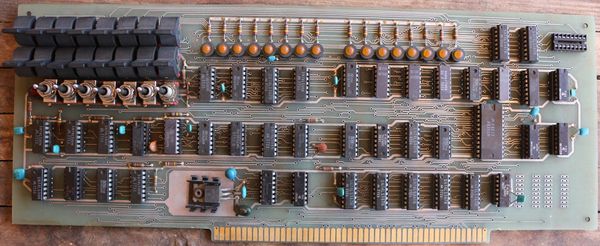

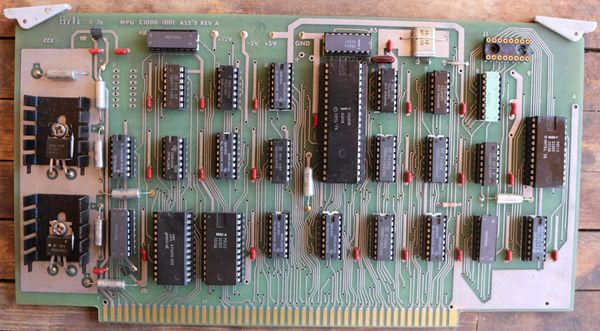

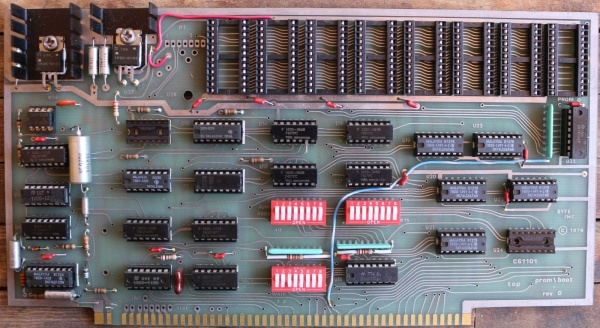

BYT-8 Front panel.jpg BYT-8 MPU Rev A.jpg BYT-8 Prom boot rev 0.jpg BYT-8 FP CPU Works on my machine.jpg

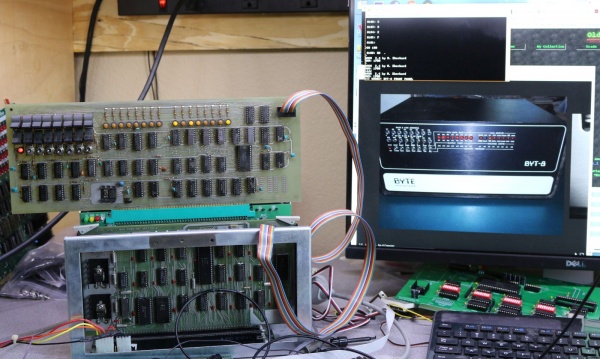

Front panel on the bench running Martin's 88-2SIOJP see TeraTerm on the monitor with signon.

Documentation

Download

Thanks to glitchwrks I've got a great set of documentation. I combined the following files into a single downloadable BYT-8 Documentation.zip file.

See also; BYT-8 Documentation.zip description page.

Contents

  • acorn_checkout.pdf
  • bus_definition.pdf
  • front_panel.pdf
  • front_panel_theoty_assembly.pdf
  • mpu.pdf
  • mpu_schematic_full_rotated.pdf
  • mpu_theoty_assembly.pdf
  • mpu_theoty_assembly_schematic.pdf
  • parts_list.pdf
