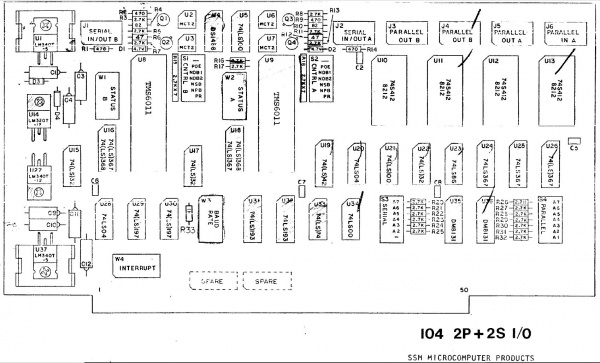

SSM IO4

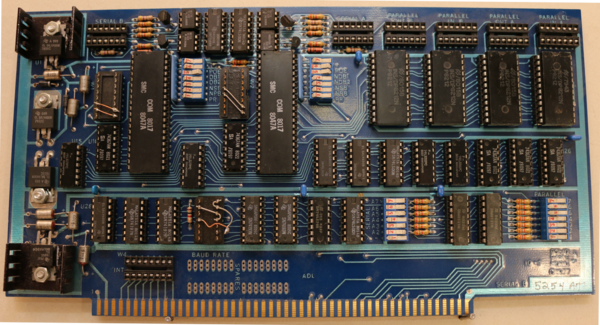

A Solid State Music I04 serial / parallel I/O board. This specific board belonged to my dad. I believe I have memories of using it myself. This page will serve to document it's original settings before I attempt to reconfigure it as a Mits Altair 88-SIO A board.
Resources
- Configuring the SSMIO4 for use in an Altair 8800 by Theo at tkc8800
- SSM IO4 as Mits 88-2SIO My restoration / repair / configuration blog post
Components
I wonder where I might get a part like this. Note the twisted pair may be easier to connect and solder to a DB-25 connector.
Here is a ribbon cable variation from DigiKey for $2.51.
Looking for a good, good as in thrifty, source for these. Digikey has [them for $2.93]
Use the contact form on my blog to contact me.
