Latest revision as of 13:56, 15 July 2015
S100 Computers / N8VEM S-100 IDE/CF version 3
"A Production Board Because this board and software may be of use to others and because I would like to have a "real" board rather than the above prototype in New Boards, together with Andrew Lynch at N8VEM (see here) we made a "proper" commercial type S-100 board. Through Andrew's magic hands (and hard work) a very nice S-100 board has emerged. Shown below. The board uses 24 bit address lines and 16 or 8 bit IO ports." Quote from S100Computers.com

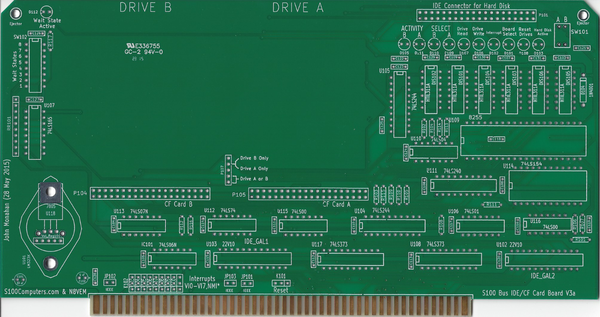

PCB
Build/Debug Log
myide.asm Z80. Not 8080/8085 See this thread on N8VEM-S100 Google group.
; jha 6/27/2015 testport.asm
; test the S-100 IDE v.3 port addressing
;
0100 org 0100h
0100 DB30 loop: in 030h
0102 C30001 jmp loop
0105 end

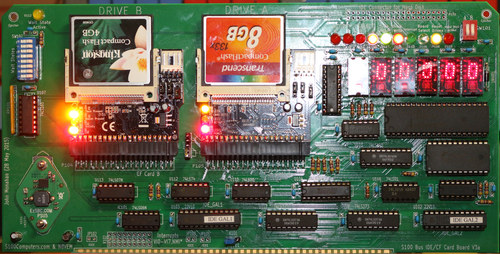

Assembled IDE/CF
